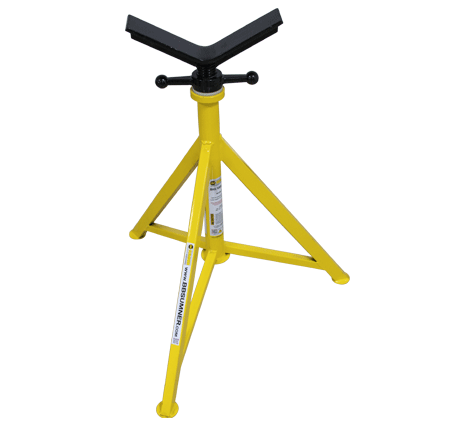

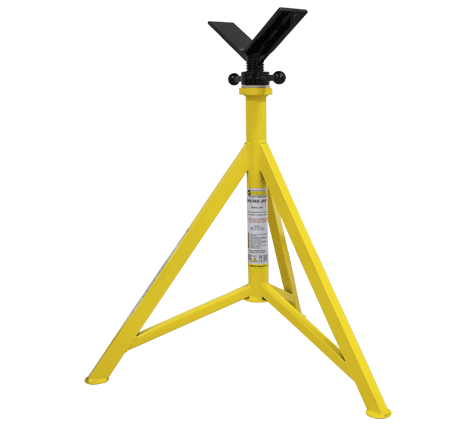

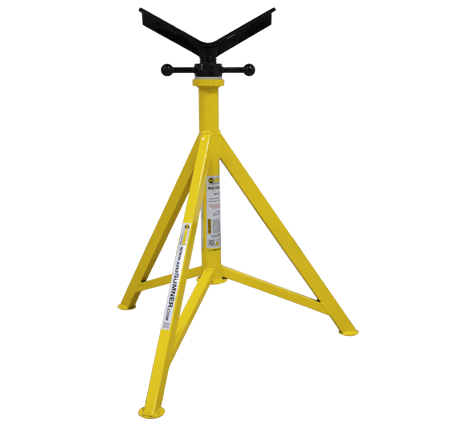

The B&B SUMNER Three Leg Mega Jack is expertly engineered to deliver a wider, more stable stance, significantly enhancing safety during heavy-duty operations. This robust design provides increased balance on uneven or challenging surfaces, reducing the risk of tipping or shifting under load. It is ideally suited for demanding environments where stability is a critical requirement.

All Mega Jack models come equipped with a generously sized 16-inch V-head. This head is reinforced with durable V-gussets that provide additional strength and rigidity, ensuring superior load distribution and structural integrity. As a result of these engineering enhancements, the load-bearing capacity of each jack is substantially increased – supporting up to 5,000 lbs with confidence and reliability.

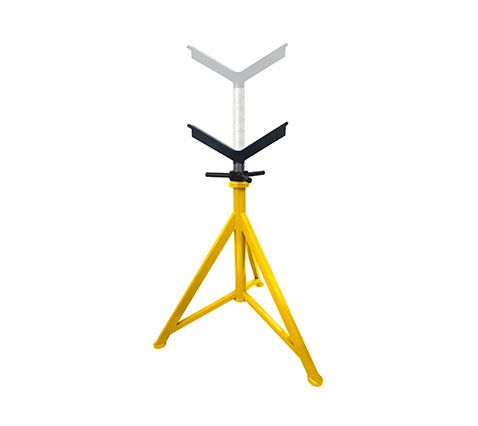

A key improvement across the Mega Jack lineup is the use of a 1.75-inch solid ACME-threaded height adjustment mechanism. This not only provides precise control over height settings but also eliminates the need for traditional components such as the adjustment washer, inner support tube, and T-handle. By simplifying the adjustment process, these changes reduce complexity, minimize potential operator errors, and streamline overall usability.

Regardless of the application or industry, the Three Leg Mega Jack delivers unmatched performance, safety, and ease of use – making it a reliable solution for professionals who demand strength and stability in their support equipment.

• Double reinforced V-head
• Increased V-head dimensions allows for up to 32″ / 813 mm pipe diameters
• Over-sized legs and braces for increased capacity
• Third-party tested with over a 3:1 safety ratio
• Increased footprint for additional stability
•  Machined ACME nut with tri-handle increases durability and adjustment ability
• 5,000 lbs load capacity!
• Heavy-duty 13/4″ (1.75″) solid ACME rod adjustment
